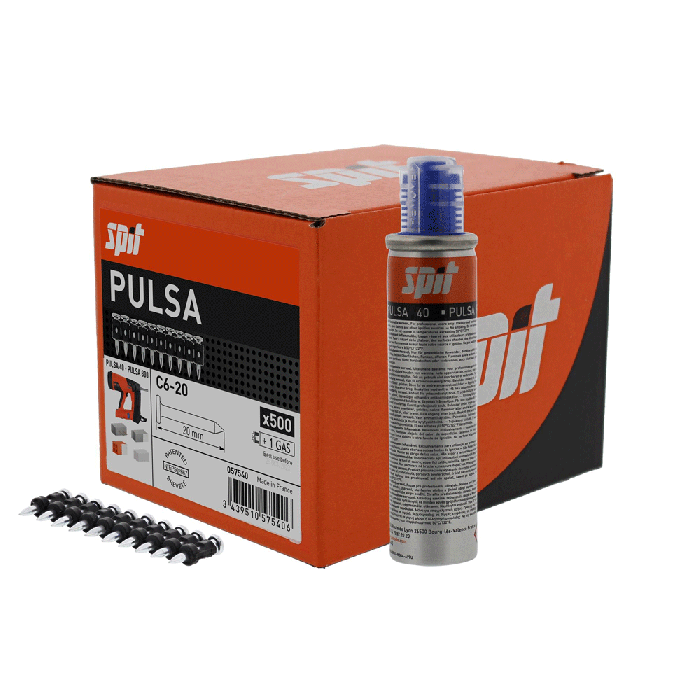

Spit C6-20 Pulsa Pins 20mm x500 with Gas Cartridge 057540

Spit C6-20 057540 — 20mm Pulsa C6 Concrete Pins For Electrical Fittings, Drywall Track & Timber

The Spit C6-20 057540 pins are 20mm collated gas nails from the Pulsa C6 range, designed as standard fixings for electrical fittings, metal partition tracks and timber sole plates into concrete. With a hardened carbon steel shank and zinc-coated finish on a black plastic strip, they provide a fast, reliable alternative to drilling and plugging when used with Spit Pulsa gas nailers.

Standard Pulsa Pin For Everyday Concrete Fixings

C6-20 pins are recommended for fixing metal drywall tracks on floors and walls in C20/25 and C30/37 concrete, as well as a wide range of Spit metal and plastic accessories such as TRH-Clip threaded rod hangers, MCC-0 metal cable ties, perforated strip, CLIPELEC bases, P-Clips, E-Clips and cable bows. This makes them a go-to choice for both drylining contractors and electricians who need one pin that covers most light duty fixings to concrete slabs and walls.

Proven Performance In Non-Cracked Concrete

For non-structural, redundant fixing patterns (multiple aligned fixings sharing the load), C6 pins in C20/25–C30/37 non-cracked concrete provide design resistances up to 0.79kN at 18mm embedment, giving installers dependable holding power for rails, clips and small brackets when spacing and edge distances are respected. For light cable tray systems fixed with compatible accessories such as metal P-Clips and CLIPELEC bases, design resistance per metre is up to 0.15kN with typical fixing spacings of 0.40–1.00m depending on tray orientation and reinforcement.

Engineered For Pulsa Gas Tools

Supplied 500 per box on black collated strip, C6-20 pins are compatible with Spit Pulsa P27 (95J), Pulsa P40P+ (100J) and Pulsa P65 (100J) gas nailers for fast fixing on floors, walls and soffits. Each pin uses a 2.6mm diameter carbon steel shank (53–56HRC for C6-20) and approx. 6.3mm head, electro-galvanised with at least 5μm zinc for corrosion protection in internal environments.

Typical applications include fixing metal drywall track, electrical base plates and clips, perforated strip, threaded-rod hangers, light timber battens and wire mesh/waterproofing washers into C20/25–C30/37 concrete floors, walls and soffits.

Key Features Of Spit C6 20mm Pulsa Concrete Pins Include:

• 20mm Spit C6 20 Standard Pulsa Pins For Fixing Into Concrete
• Designed For Fixing Electrical Fittings Metal Partition Tracks And Wooden Footings To Concrete Bases
• Suitable For Use In C20 25 And C30 37 Non Cracked Concrete
• Compatible With Spit Pulsa P27 Pulsa P40P Plus And Pulsa P65 Gas Nailers
• Black Collated Strip For Fast Loading And High Productivity On Site
• Carbon Steel Shank With Hardness 53 To 56Hrc For Reliable Penetration Into Concrete
• Electrogalvanised Zinc Coating Minimum 5µm For Corrosion Protection In Dry Internal Environments
• Approximate Shank Diameter 2.6mm With 6.3mm Head For Secure Bearing On Tracks And Accessories
• Part Of The Pulsa C6 System Alongside TRH Clip MCC 0 Perforated Strip CLIPELEC P Clip E Clip Cable Bows And Other Accessories
• Design Resistance In Non Cracked Concrete Up To 0.79kN At 18mm Embedment For Redundant Non Structural Fixings
• Approved For Use In Light Cable Tray Fixings With Design Resistance Per Metre Up To 0.15kN When Used With Specified Accessories
• Ideal For Drywall Track Electrical Accessories Timber Battens And Wire Mesh Or Waterproofing Systems On Floors Walls And Ceilings
