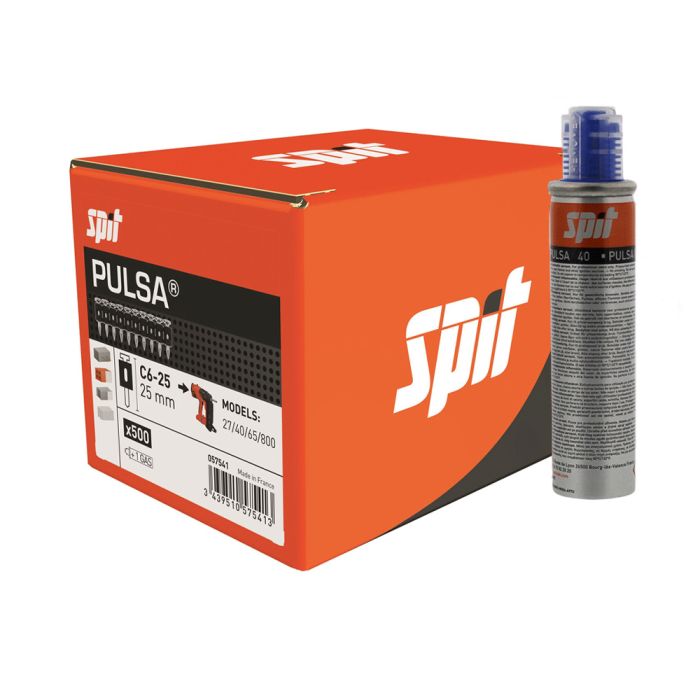

Spit C6-25 Pulsa Pins 25mm x500 with Gas Cartridge 057541

Spit C6-25 057541 — 25mm Pulsa C6 Concrete Pins For Electrical Fittings, Drywall Track & Timber

The Spit C6-25 057541 pins are 25mm collated gas nails from the Pulsa C6 range, designed for fixing electrical fittings, metal drywall tracks and timber sections into concrete. With a hardened carbon steel shank, zinc-coated finish and black plastic collation strip, they provide a fast, reliable alternative to drilling and plugging when used with Spit Pulsa gas nailers.

Versatile 25mm Pin For Thicker Tracks & Timber

C6-25 pins give a little more reach than C6-20, making them ideal where you need extra embedment into the slab or are fixing slightly thicker materials. The Pulsa C6 selection guide recommends C6-25 for metal drywall tracks on floors and walls in C20/25 and C30/37 concrete, as well as for timber elements 15–20mm thick on floors and ceilings. That makes them a good “middle length” choice for deeper channels, sole plates and accessories where 20mm pins are borderline.

Proven Holding Power In Non-Cracked Concrete

In redundant, non-structural fixing patterns (multiple aligned fixings sharing the load), Pulsa C6 pins installed 15–20mm into C20/25–C30/37 concrete offer design resistances from 0.58kN up to 0.94kN per fixing, depending on embedment. This gives dependable holding power for drywall tracks, timber plates and Spit accessories such as TRH-Clip threaded rod hangers, MCC-0 metal cable ties, perforated strip, P-Clips, E-Clips and cable bows when edge distances and spacings are respected.

Engineered For Pulsa Gas Nailers

C6 pins are manufactured from carbon steel with hardness 50–55HRC for C6≥25, giving a good balance of penetration and durability in concrete. They are supplied 500 per box on black collated strip and are compatible with Spit Pulsa P27 (95J), Pulsa P40P+ (100J) and Pulsa P65 (100J) gas tools, allowing fast installation on floors, walls and soffits without drilling or resin. Electrogalvanised zinc coating with at least 5μm thickness provides corrosion protection for dry internal environments.

Everyday Fixing For Dryliners & Electricians

With a 2.6mm shank and approximately 6.3mm head diameter, C6-25 pins seat securely under track flanges, timber feet and accessory bases. They are part of a complete Pulsa C6 system covering drywall tracks, light cable tray systems, waterproofing washers and a wide range of metal and plastic cable accessories, so one pin length can handle many first-fix tasks across the job.

Typical applications include fixing metal drywall track, electrical junction boxes and bases, perforated strip, threaded rod hangers, timber battens and wire mesh/waterproofing systems into C20/25–C30/37 concrete floors, walls and ceilings.

Key Features Of Spit C6 25mm Pulsa Concrete Pins Include:

• 25mm Spit C6 25 Pulsa Pins For Fast Fixing Of Tracks Timber And Accessories Into Concrete
• Extra Length Compared With C6 20 For Better Embedment And Thicker Materials Such As 15–20mm Timber Plates
• Suitable For Fixing Metal Drywall Tracks On Floors And Walls In C20/25 And C30/37 Non Cracked Concrete
• Recommended For Use With Spit Metal Accessories Including TRH Clip MCC 0 Perforated Strip P Clips E Clips And Cable Bows
• Carbon Steel Shank With Hardness 50–55Hrc On C6 25 For Reliable Penetration And Holding Power
• Electrogalvanised Zinc Coating With Minimum 5µm Thickness For Corrosion Protection In Dry Internal Environments
• Black Plastic Collated Strip With 500 Pins Per Box For Fast Loading Into Pulsa Gas Nailers
• Design Resistance In Non Cracked Concrete Up To 0.94kN At 20mm Embedment For Redundant Non Structural Fixings
• Compatible With Spit Pulsa P27 P40P Plus And P65 Gas Tools For Floor Wall And Soffit Installation
• Ideal For Drywall Track Electrical Fittings Timber Sole Plates Wire Mesh And Waterproofing Systems On Concrete Floors And Walls
